ASROCK B650M PRO RS /AM5

Референция B650M PRO RS

На склад

124,95 €

С вкл. данък

B650M PRO RS _MO

ASROCK B650 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 2xPCIEx16 _MO

Form Factor: - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; - 2oz Copper PCB
OS: - Microsoft® Windows® 10 64-bit / 11 64-bit
Warranty: 36 Months

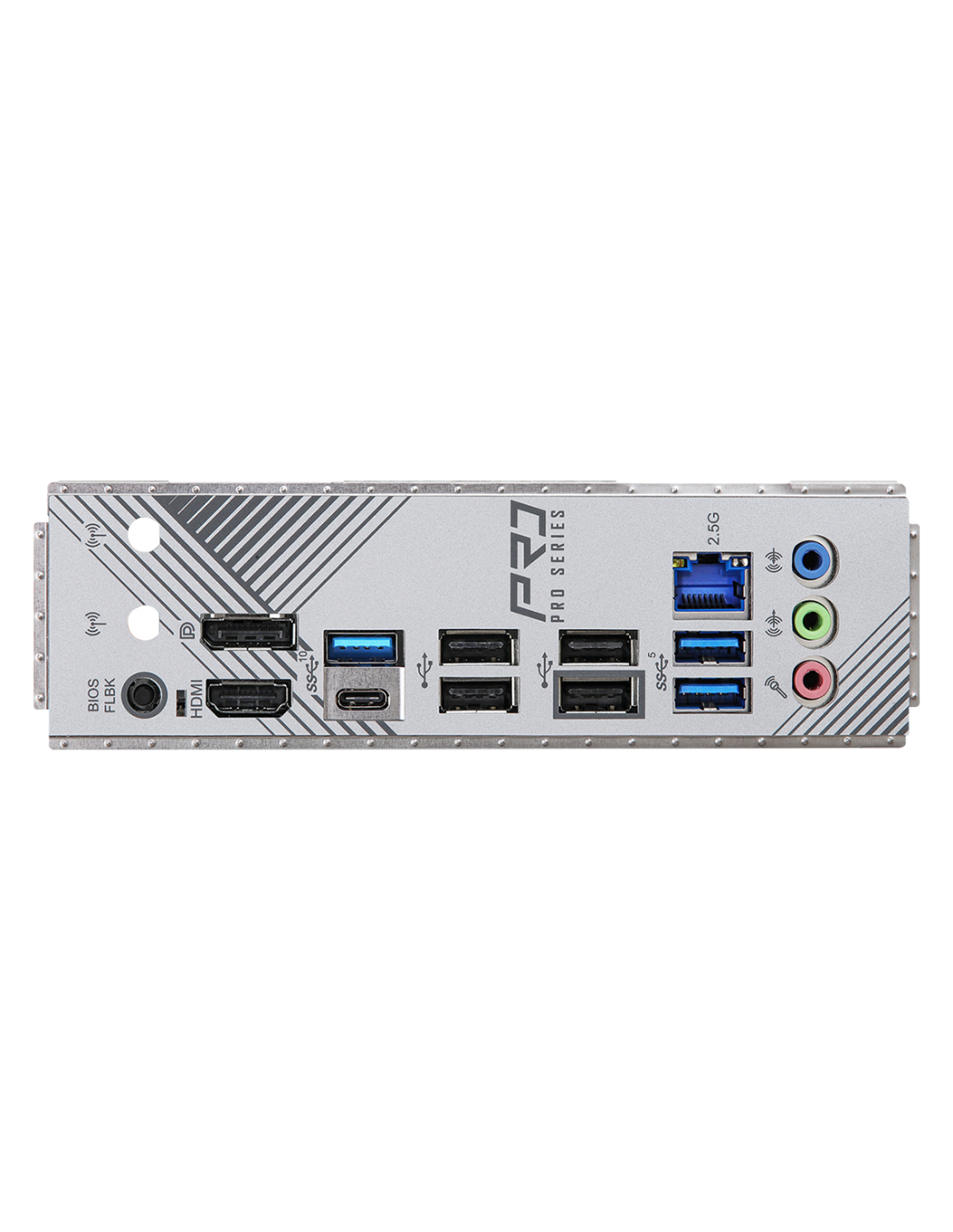

Rear panel I/O: - 2 x Antenna Mounting Points; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s); - 2 x USB 3.2 Gen1 Ports; - 4 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - 1 x BIOS Flashback Button; -
Chipset: - AMD B650
Storage: CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*; Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280
LAN: - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Strea
Audio: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio
Memory type: - Dual Channel DDR5 Memory Technology; - 4 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC); - Max. capacity of system memory: 192GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memor
Vendor_url: https://www.asrock.com/MB/AMD/B650M%20Pro%20RS/index.asp#Specification
Graphics: Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K
Expansion Slots: CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*; Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - Supports AMD CrossFire™; - 15? Gold Contact in VGA PCIe Slot (P
BIOS: - 256Mb AMI UEFI Legal BIOS with GUI support
Connectors: - 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 3 x Chassis/Water Pump Fan Co
Дънна платка - чипсет: AMD B650
Дънна платка - поддържан тип памет: DDR5
Дънна платка - брой слотове за памет: 4 бр
Дънна платка - честота на паметта: 7200 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
Дънна платка - портове: Display Port
HDMI
USB 2.0
USB 3.2
Дънна платка - форм фактор: Micro ATX

No reviews

С доставка 24 часа
