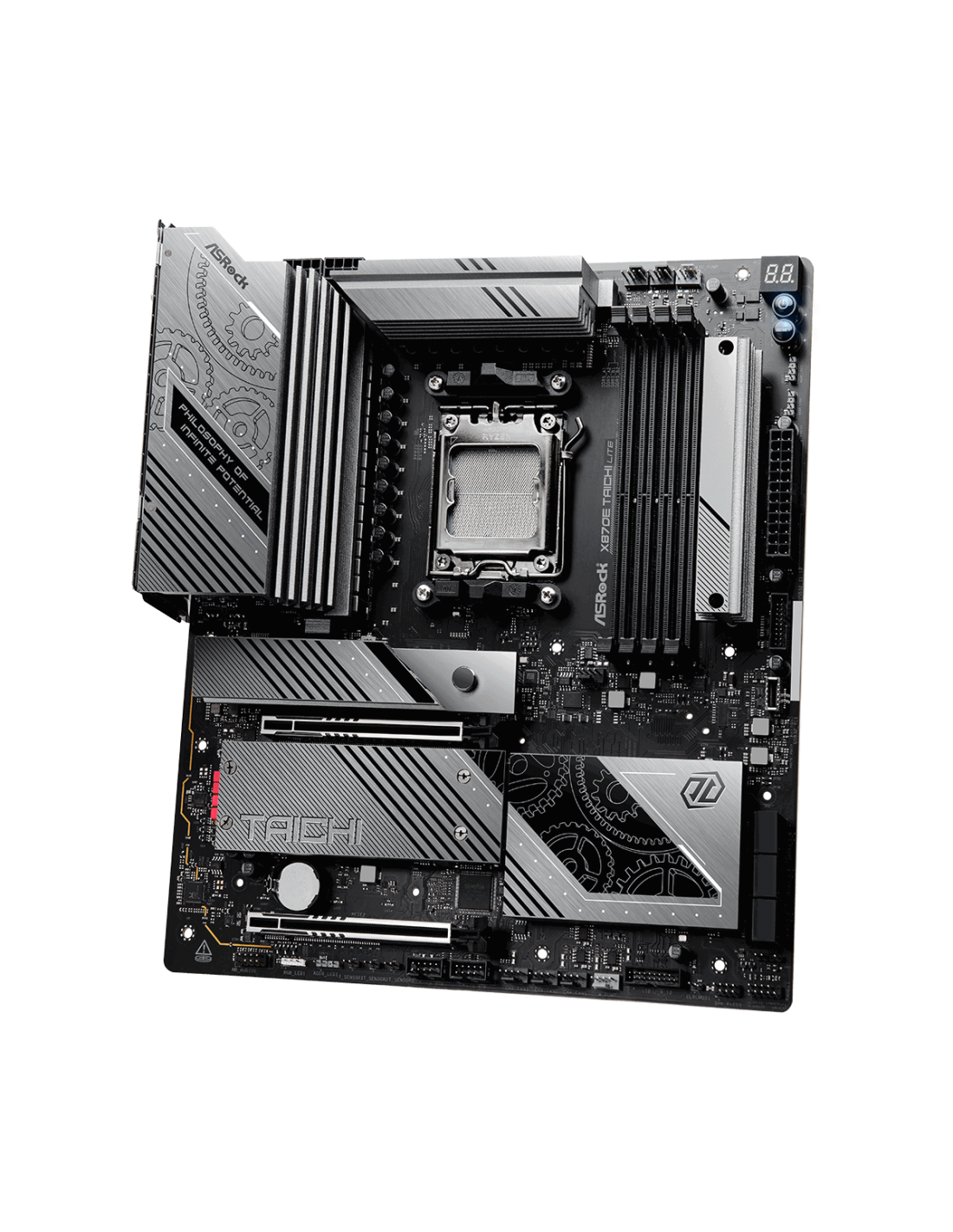

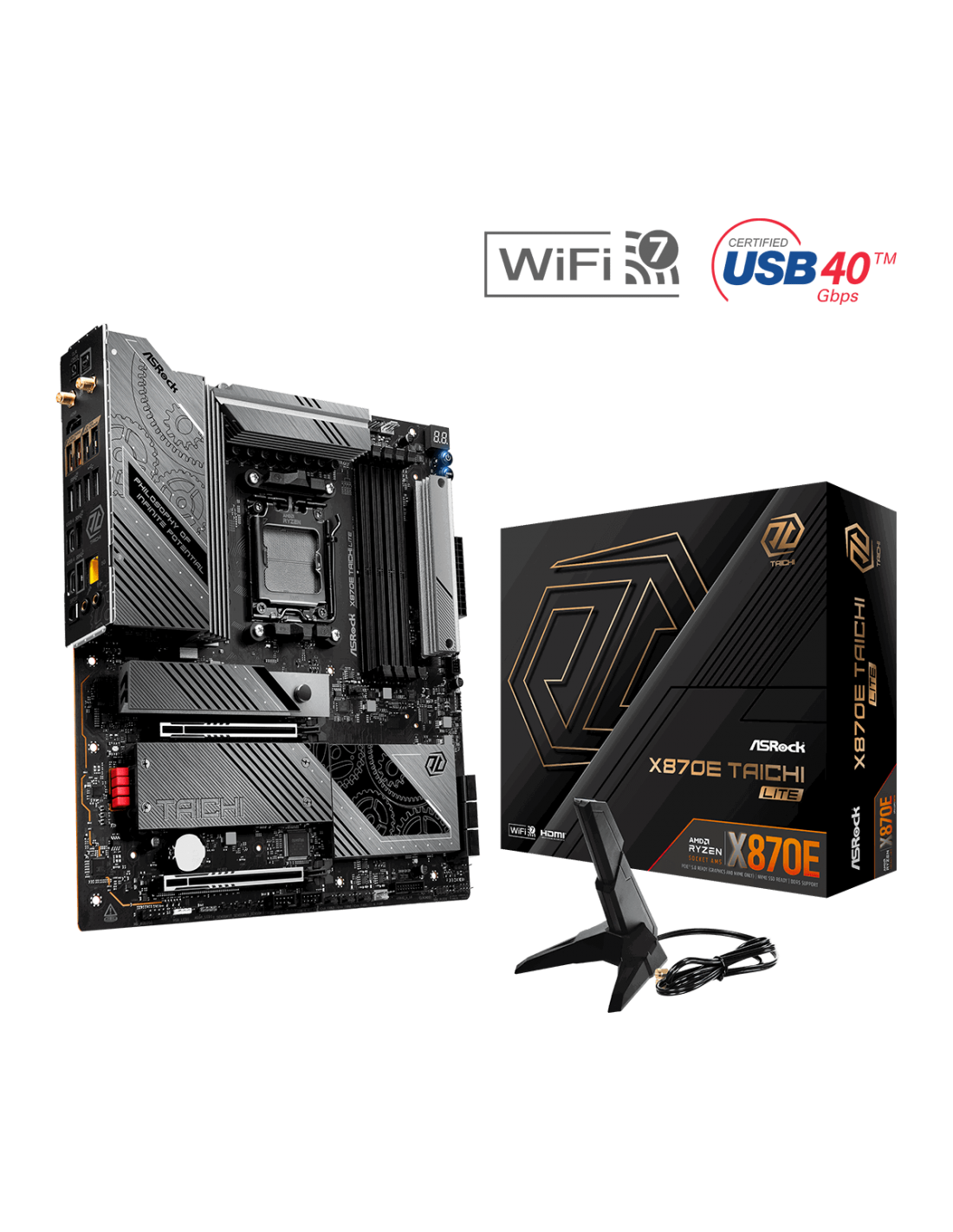

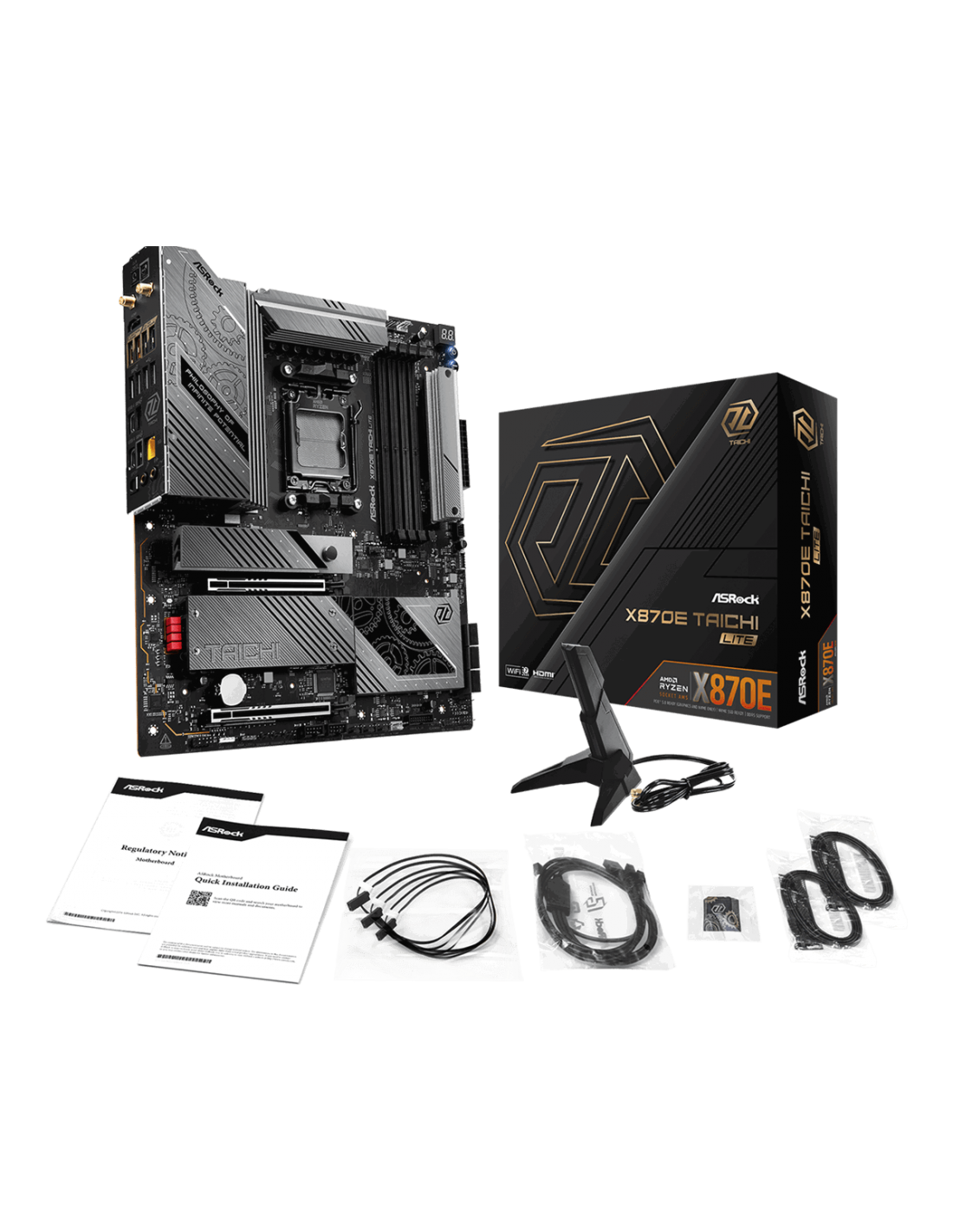

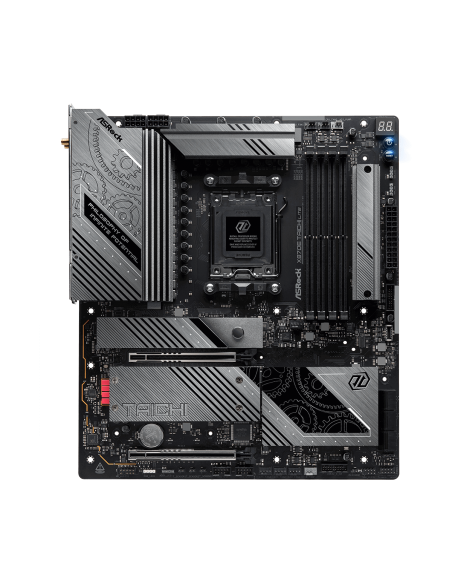

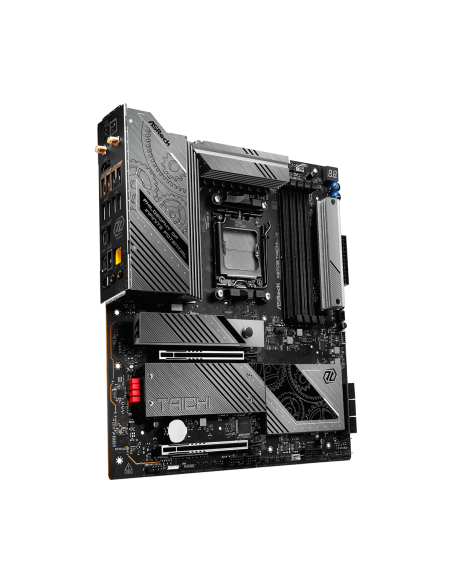

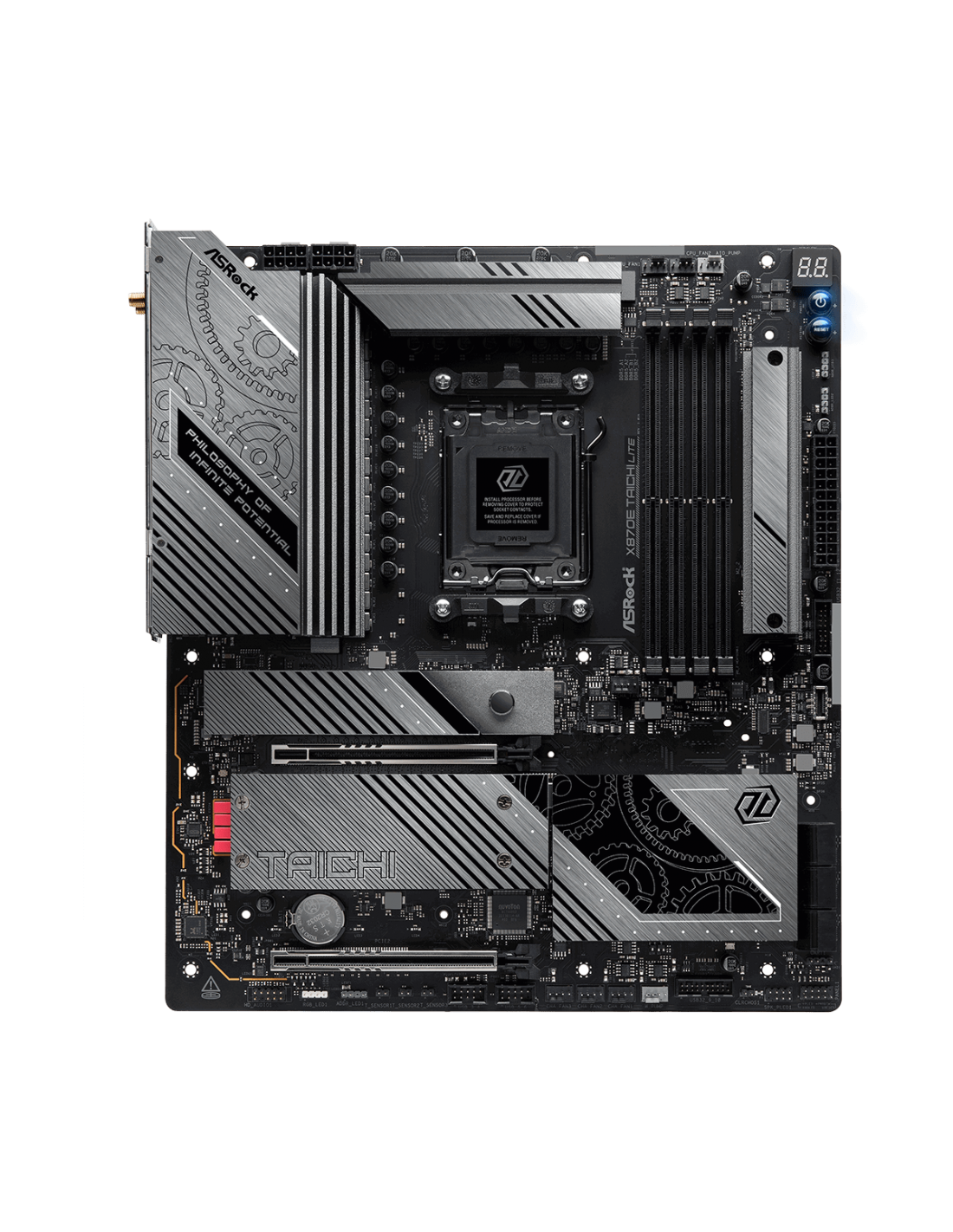

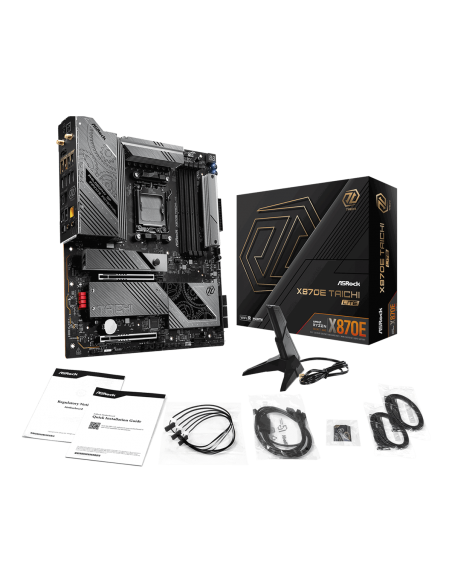

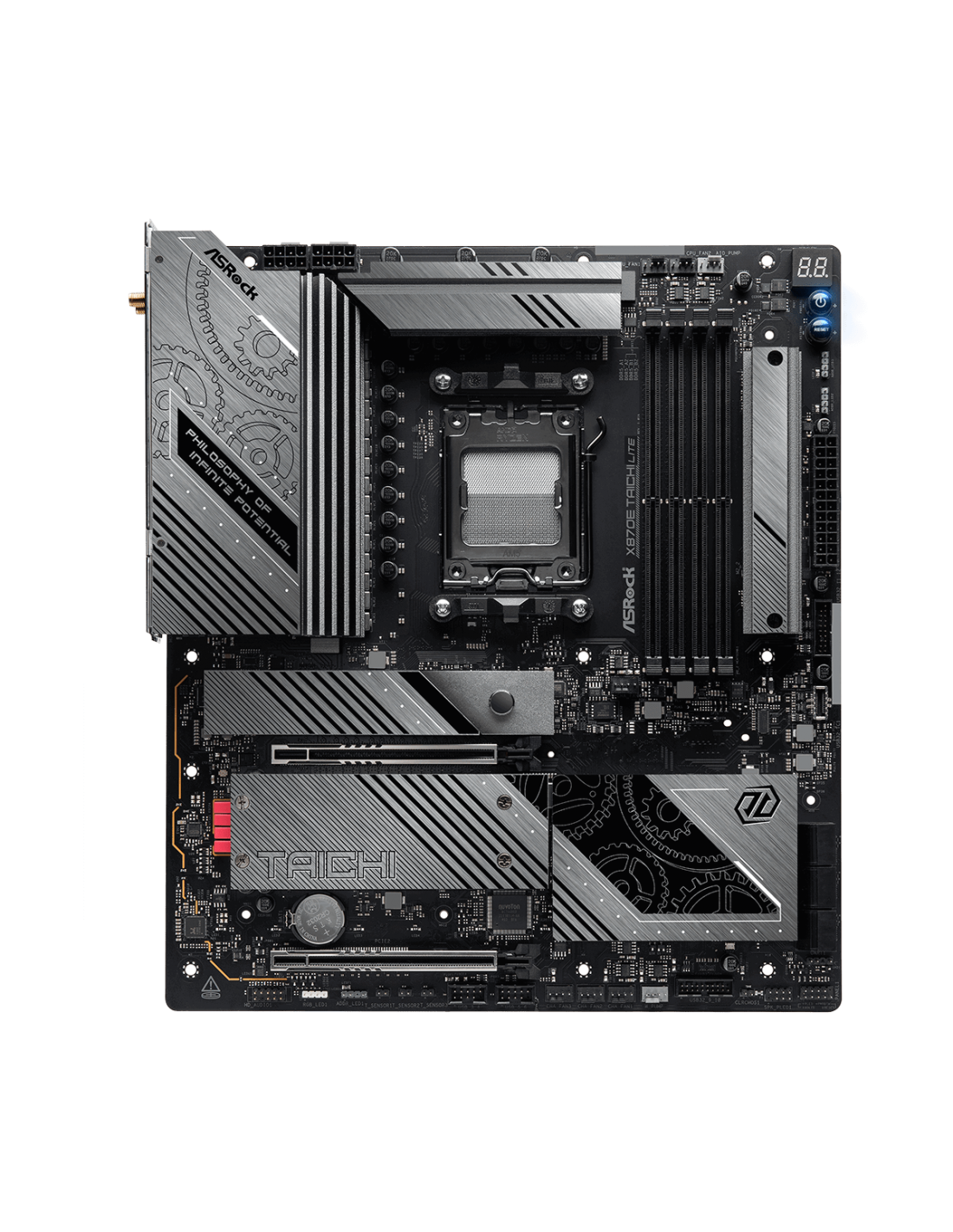

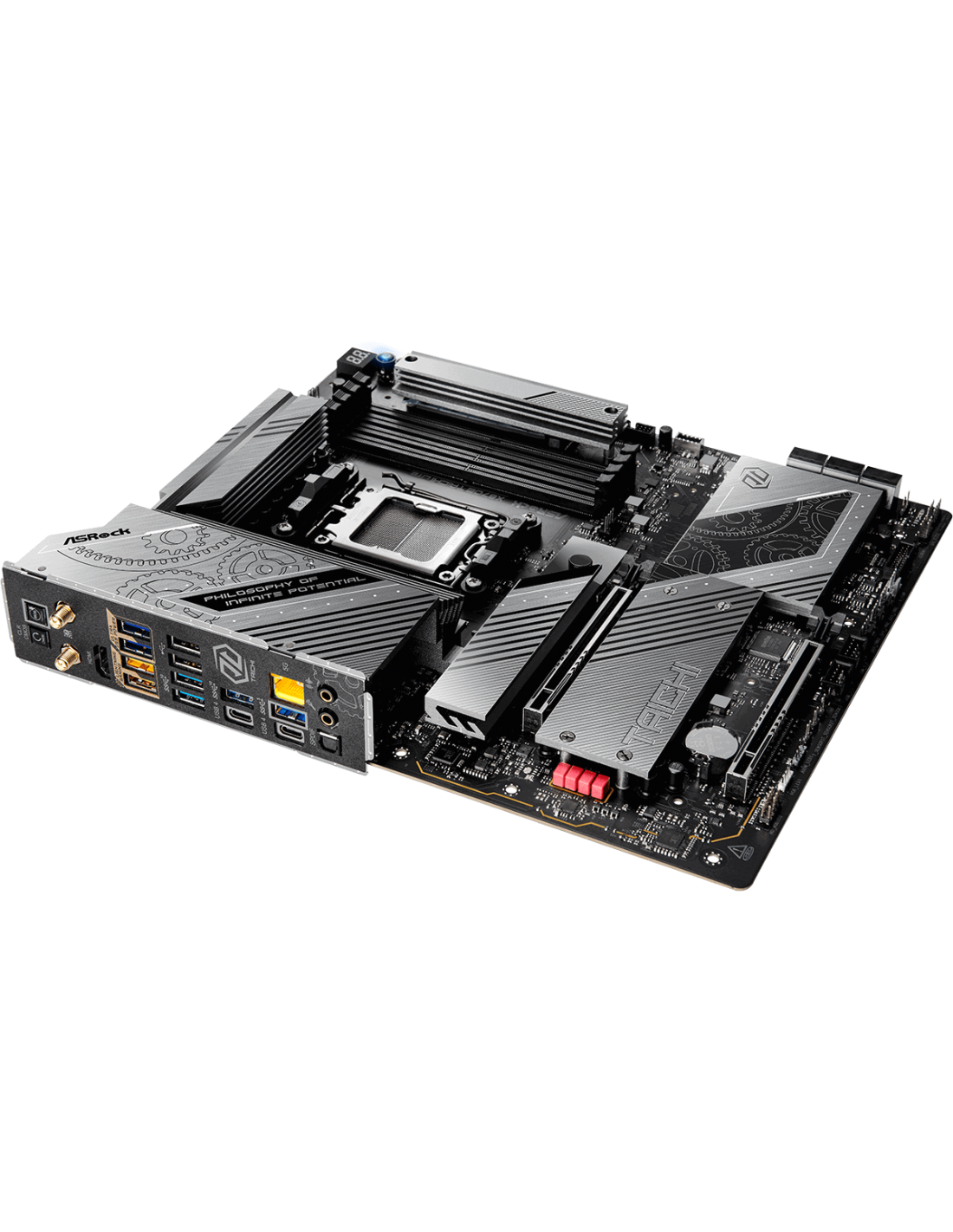

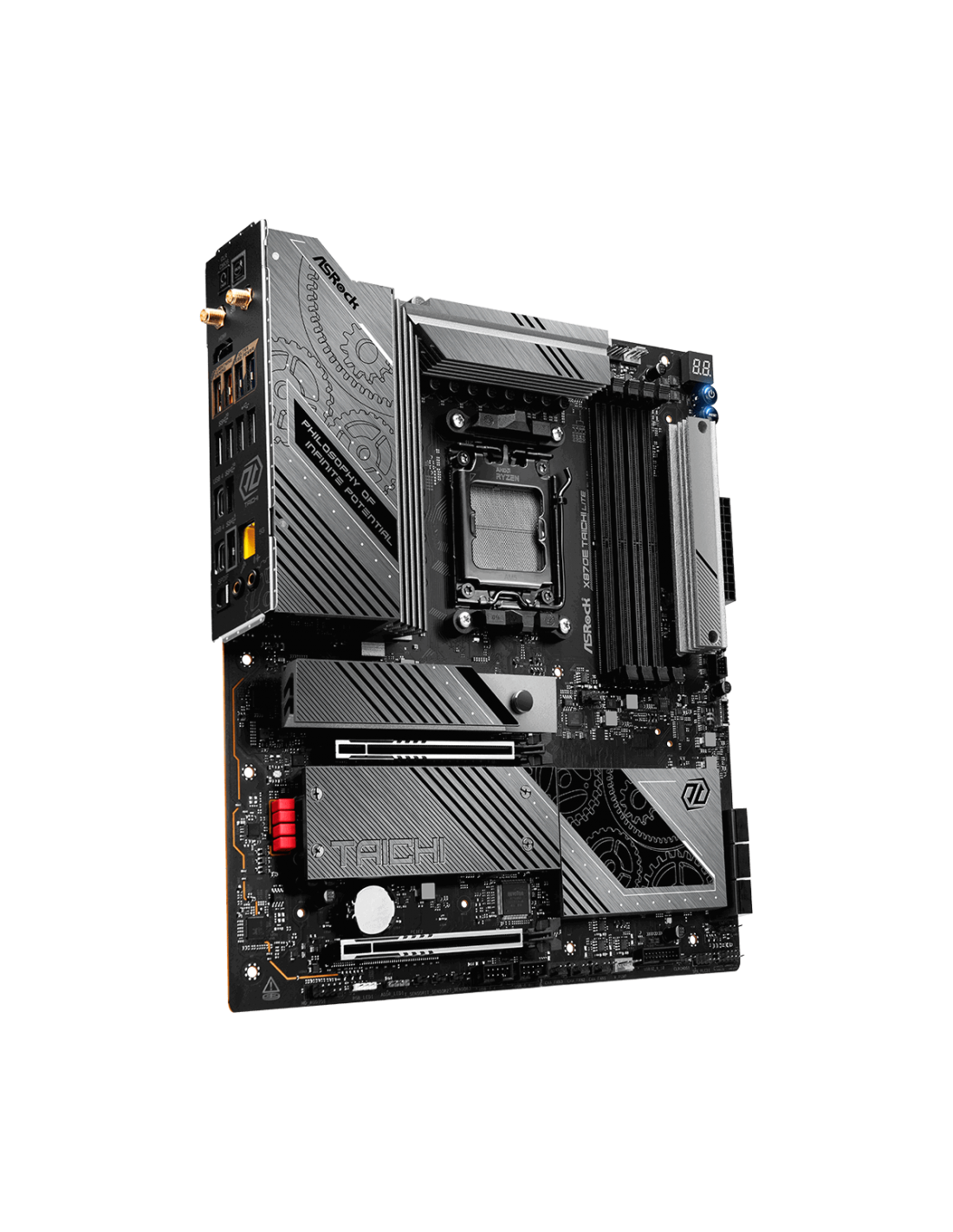

ASROCK X870E TAICHI LITE / AM5

Референция X870E TAICHI LITE

На склад

373,92 €

С вкл. данък

X870E TAICHI LITE_MO

_MO

Chipset: AMD X870E
Manufacturer: ASROCK

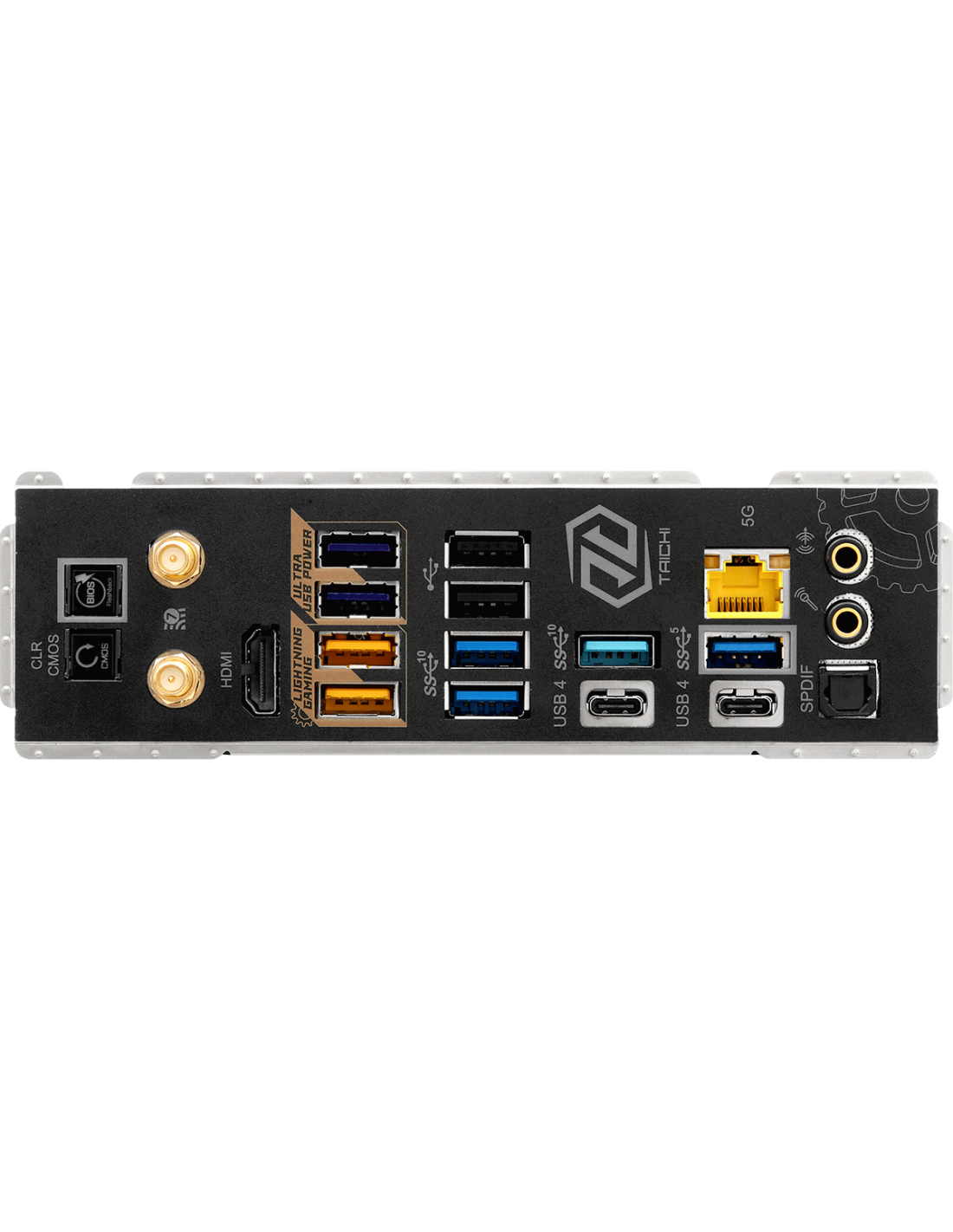

Rear panel I/O: 2 x Antenna Ports;
- 1 x HDMI Port;
- 1 x Optical SPDIF Out Port;
- 2 x USB4 Type-C Ports (40 Gb/s)*;
- 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.);
- 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)**;
Storage: CPU:;
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*;
Chipset:;
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*;
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Ge
Form Factor: EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm;
8 Layer PCB;
2oz Copper PCB;
Audio: 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec);
WIMA Audio Capacitors (For Rear Outputs);
ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR);
Individual PCB Layers for R/L Audio Channel;
Direct Drive Technology on Front headphone po
Socket: AM5
USB: CPU:;
- 2 x USB4 Type-C (Rear);
- 2 x USB 3.2 Gen2 Type-A (Rear);
Chipset:;
- 1 x USB 3.2 Gen2x2 Type-C (Front);
- 3 x USB 3.2 Gen2 Type-A (Rear);
- 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front);
- 6 x USB 2.0 (2 Rear, 4 Front)
Model: X870E Taichi Lite
CPU's supported: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors;
Supports ASRock Hyper BCLK Engine
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
Vendor_url: https://www.asrock.com/mb/AMD/X870E%20Taichi%20Lite/index.asp?utm_source=chatgpt.com#Specification
Expansion Slots: CPU:;
- 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*;
Chipset:;
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module;
- Supports AMD CrossFire™
LAN: 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s;
Realtek RTL8126
Connectors: 3 x Thermistor Cable Headers;
1 x Power LED and Speaker Header;
1 x RGB LED Header*;
3 x Addressable LED Headers**;
2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***;
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***;
1 x AIO Pump F
Memory type: Dual Channel DDR5 Memory Technology;
4 x DDR5 DIMM Slots;
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)*;
Max. capacity of system memory: 256GB;
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory mod
Bluetooth: 5.4
OS: Microsoft Windows® 10 64-bit / 11 64-bit
Graphics: Integrated AMD RDNA™ graphics (Actual support may vary by CPU);
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;
- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*;

* Only the CPU's embedded g
RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices;
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Wireless: 802.11be 2x2 Wi-Fi 7 Module;
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be;
Supports 2.4GHz/5GHz/6GHz* frequency band;
Supports 160MHz channel bandwidth with 6GHz* frequency band;
1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology;
Supports B
Дънна платка - сокет: AM5
Дънна платка - чипсет: AMD X870E
Дънна платка - поддържан тип памет: DDR5
Дънна платка - брой слотове за памет: 4 бр
Дънна платка - честота на паметта: 8200 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: HDMI
USB 2.0
USB 3.2
USB 4.0
