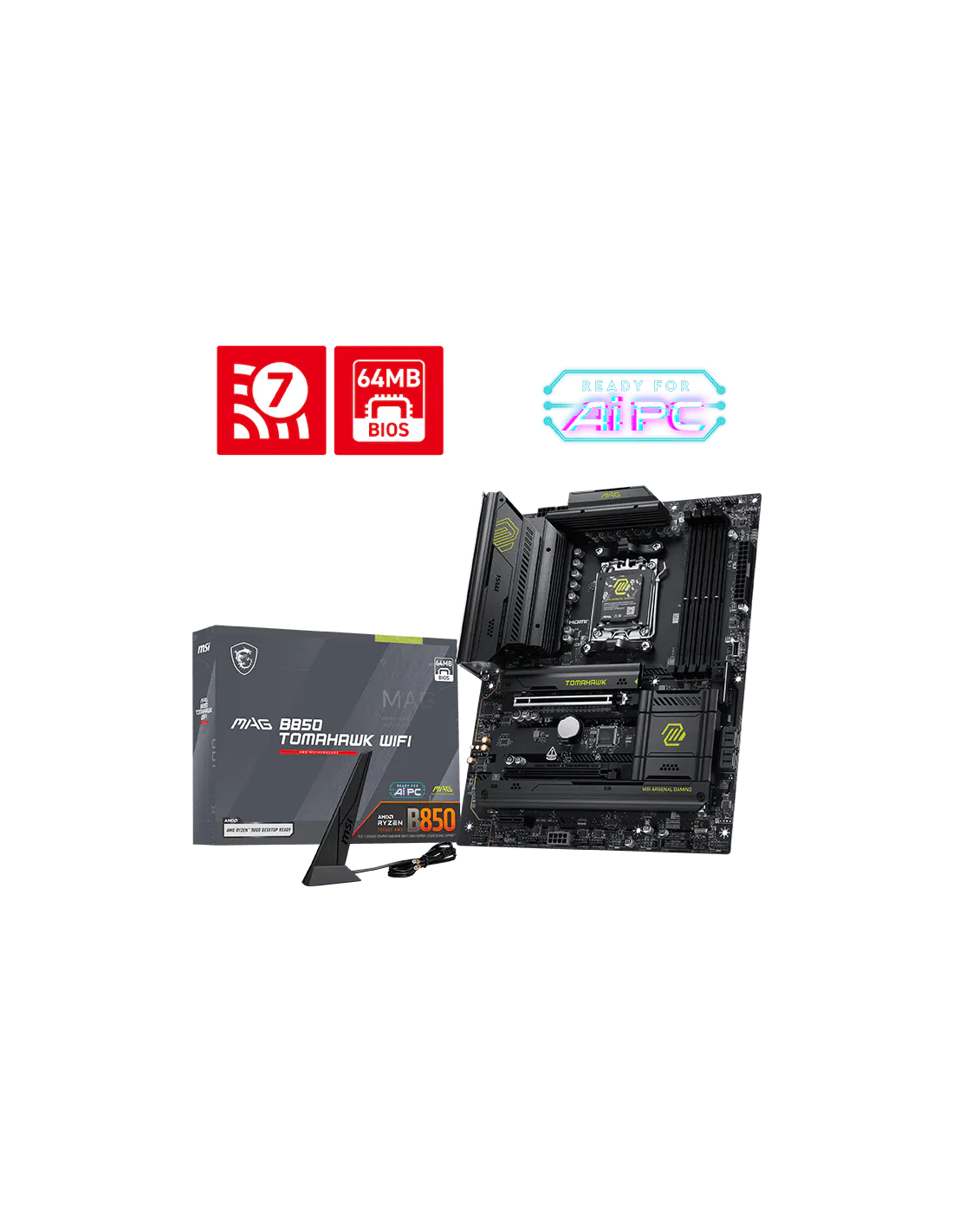

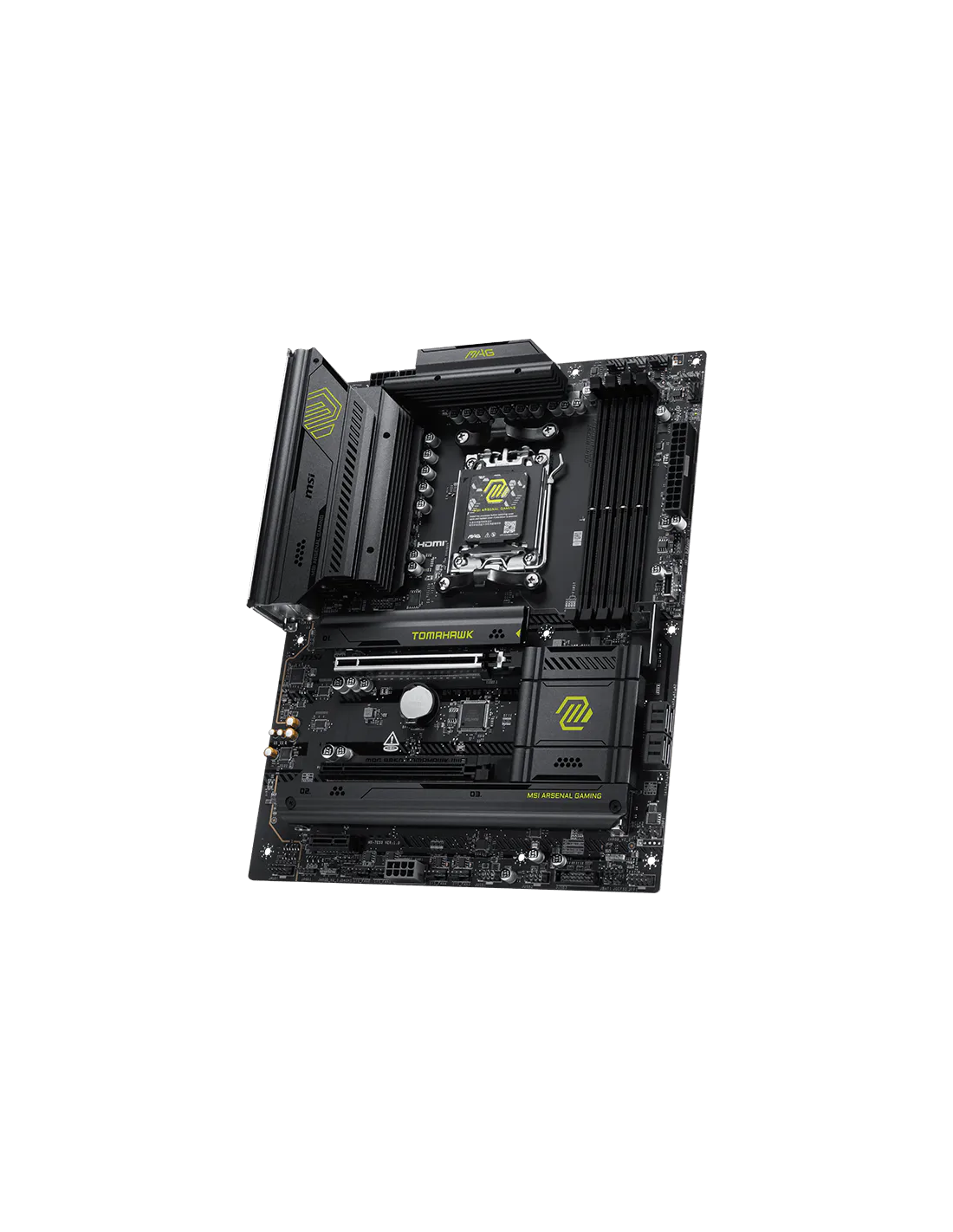

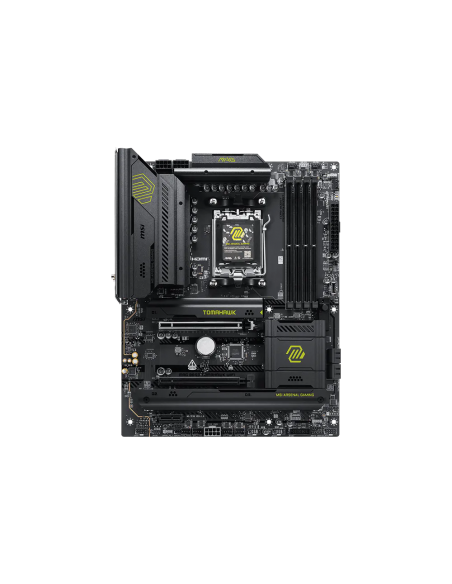

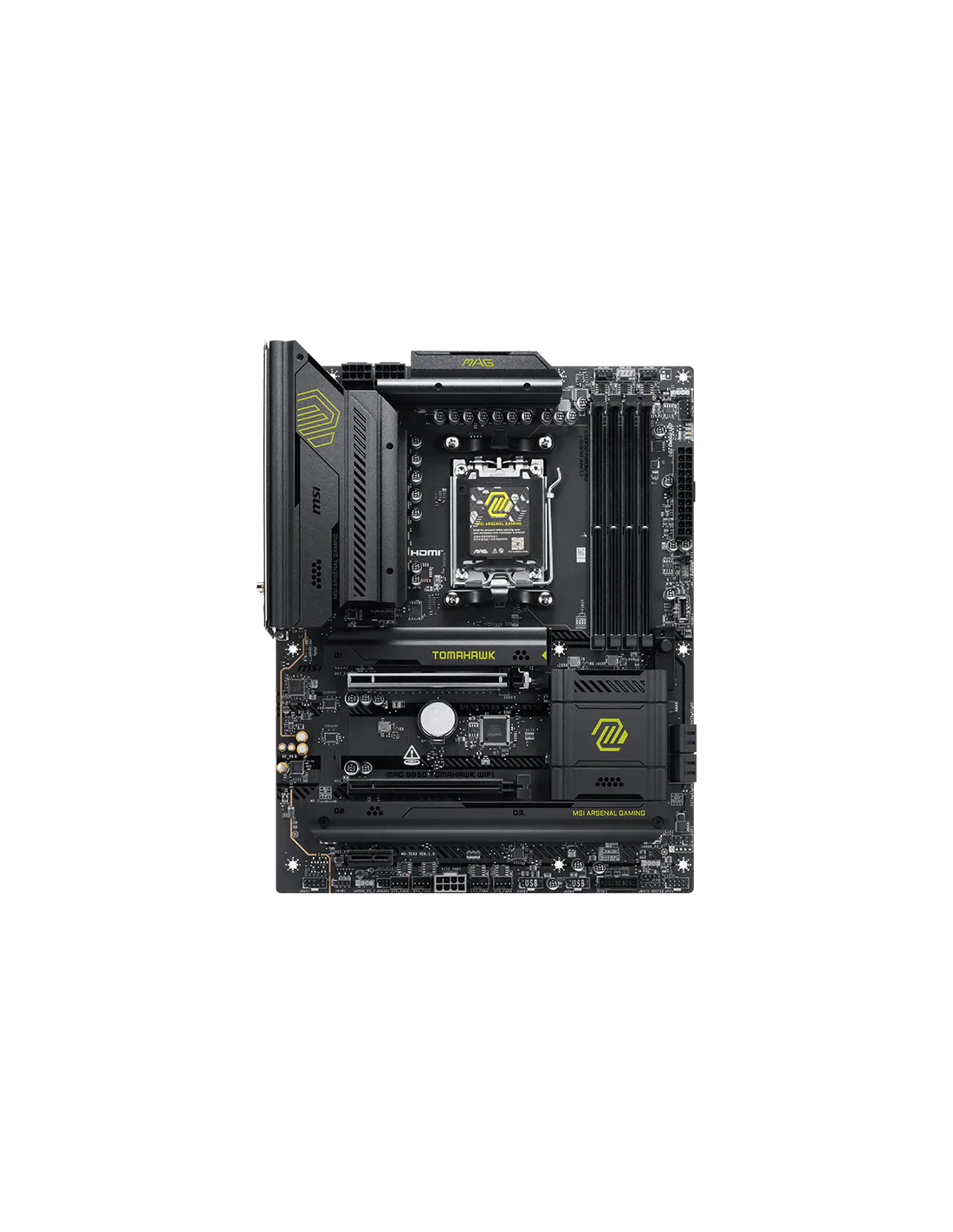

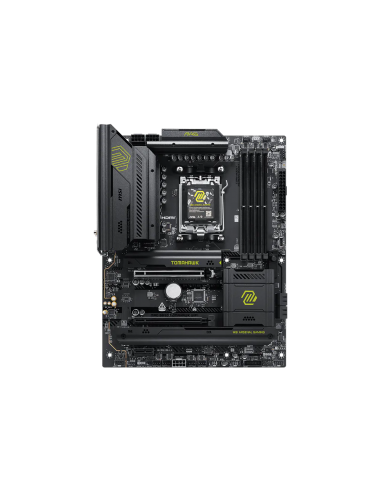

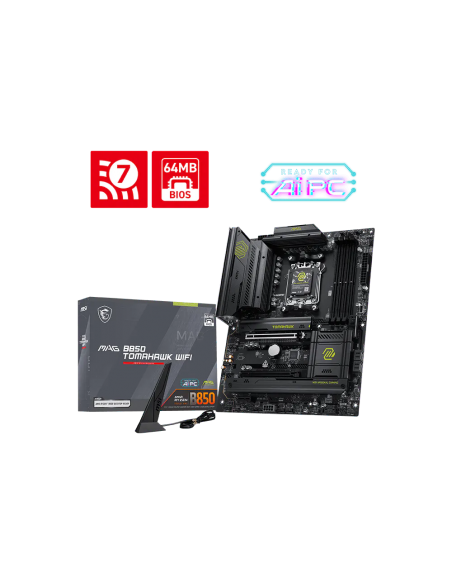

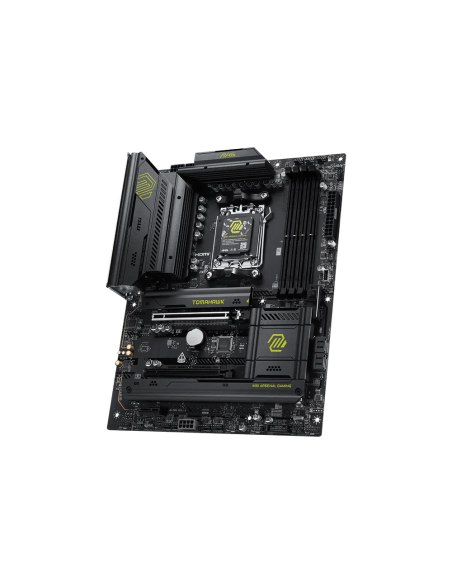

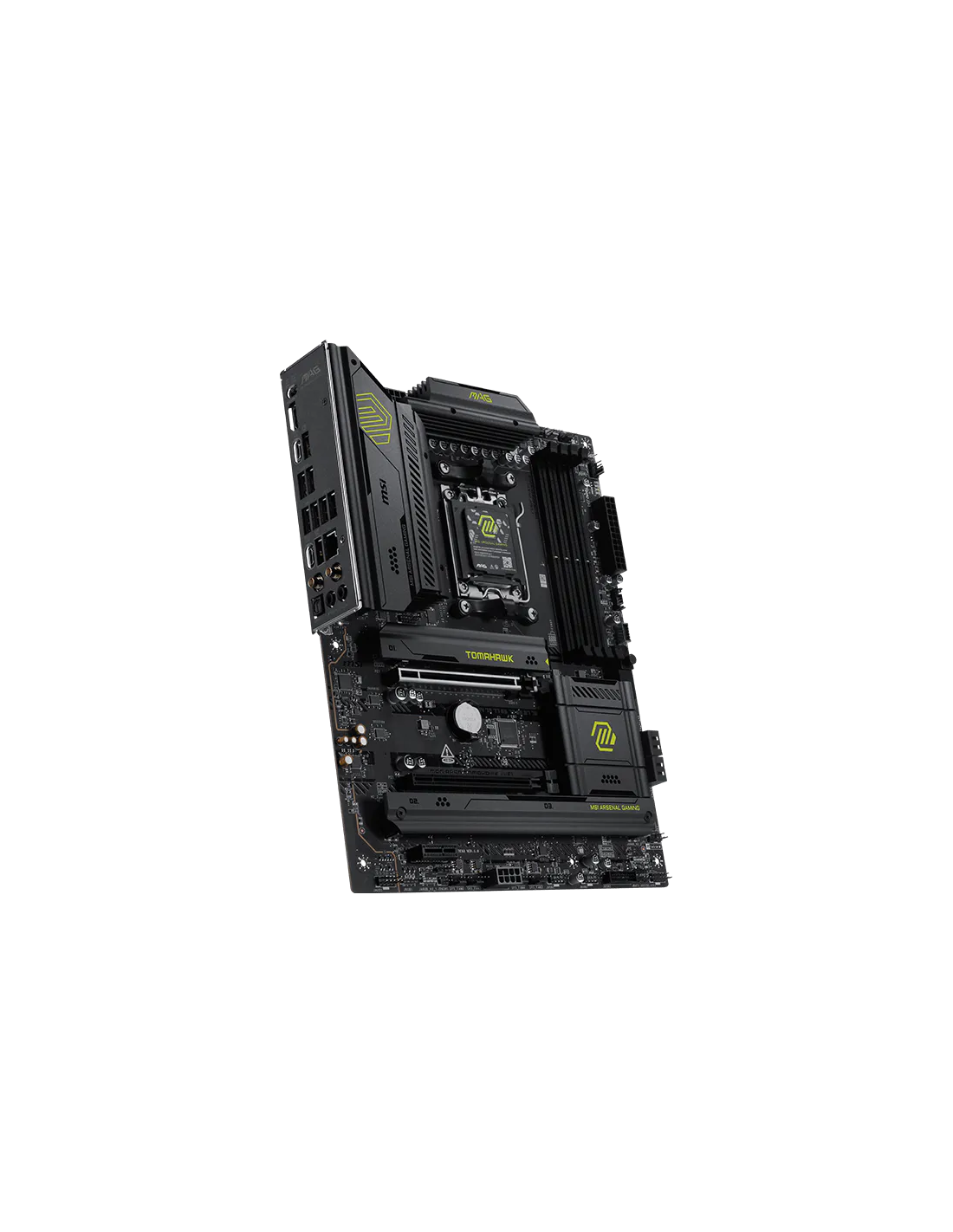

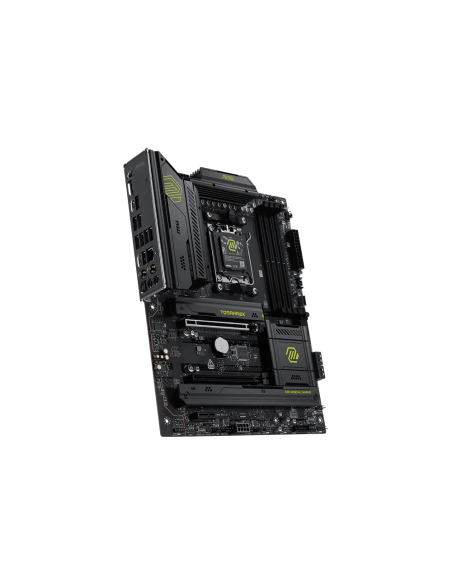

MSI MAG B850 TOMAHAWK WIFI
911-7E53-001
На склад
245,86 €
С вкл. данък
911-7E53-001_MO
- Storage
- 3x M.2;
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices;
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 dev - Memory type
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB;
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;
Ryzen™ 9000 Series Processors max. overclocking frequency:;
• 1DPC 1R Max speed up to 8200+ MT/s;
• 1DPC 2R Max speed up to 6400+ MT/s;
• 2 - Audio
- Realtek® ALC4080 Codec;
7.1-Channel USB High Performance Audio;
Supports up to 32-bit/384kHz playback on front panel;
Supports S/PDIF output - Socket
- Socket AM5
- Bluetooth
- Supports Bluetooth® 5.4**, MLO, 4KQAM
- Other
- 4x EZ Debug LED;
1x EZ Memory Detection LED - CPU's supported
- Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
- Vendor_url
- https://www.msi.com/Motherboard/MAG-B850-TOMAHAWK-WIFI
- RAID
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
- Expansion Slots
- 2x PCI-E x16 slot;
1x PCI-E x1 slot;
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset);
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset);
PCI_E1 slot;
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 700 - LAN
- Realtek® 8126VB 5G LAN
- Connectors
- 1x Power Connector(ATX_PWR);
2x Power Connector(CPU_PWR);
1x Power Connector(PCIE_PWR 8pin);
1x CPU Fan;
1x Combo Fan (Pump_Sys Fan);
6x System Fan;
1x EZ Conn-header (JAF_2);
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Tun - Dimensions
- ATX;
243.84mmx304.8mm - OS
- Support for Windows® 11 64-bit
- Graphics
- 1x HDMI™;
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz - Wireless
- Wi-Fi 7 Solution;
The Wireless module is pre-installed in the M.2 (Key-E) slot;
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps;
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be;
Supports Bluetooth® 5.4**, MLO, 4KQAM;
* 6GHz band support may de - USB
- 4x USB 2.0 (Rear);
4x USB 2.0 (Front);
2x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front);
2x USB 10Gbps Type A (Rear);
1x USB 10Gbps Type C (Rear);
1x USB 10Gbps Type C (Front);
1x USB 20Gbps Type C (Rear) - Chipset
- AMD B850

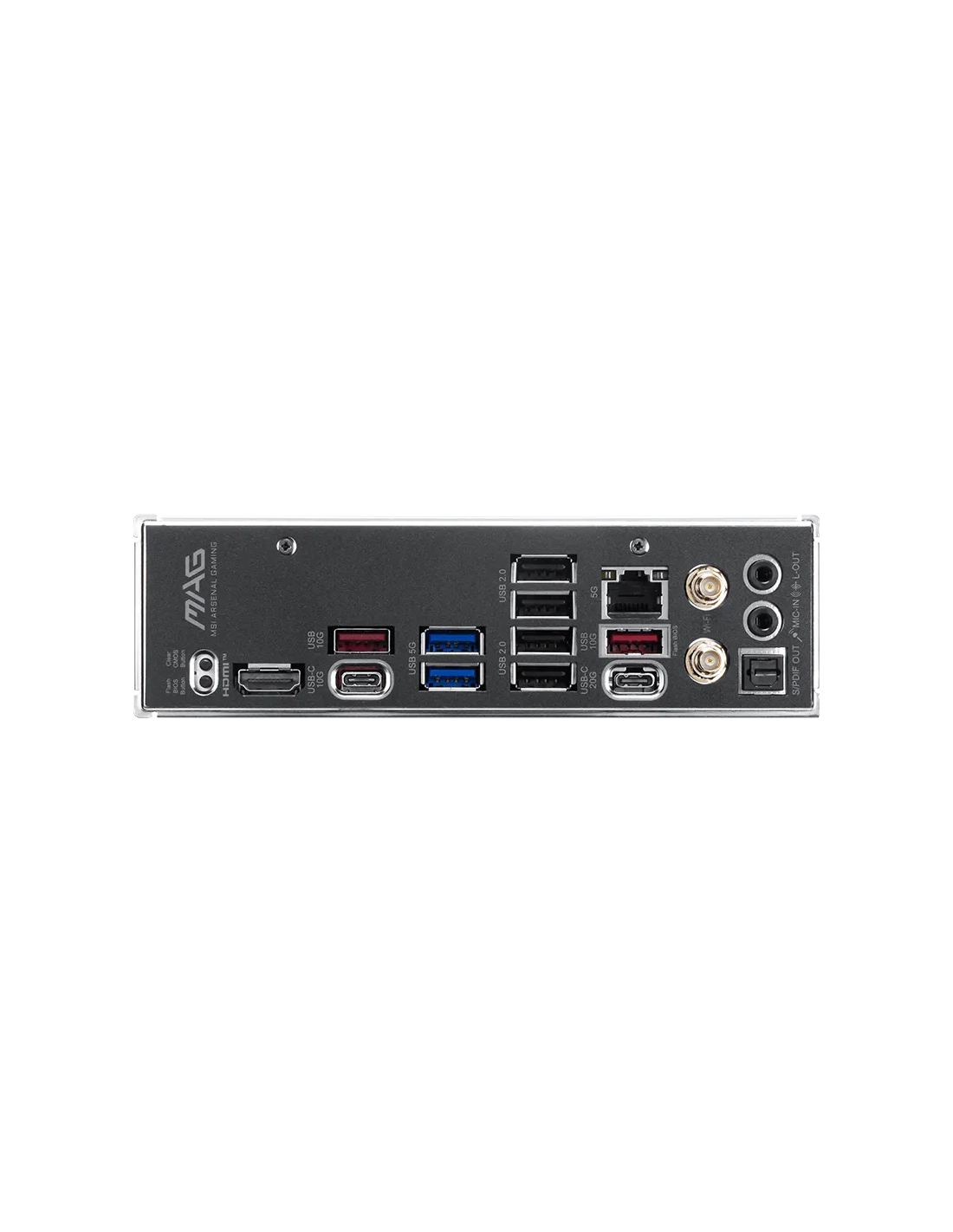

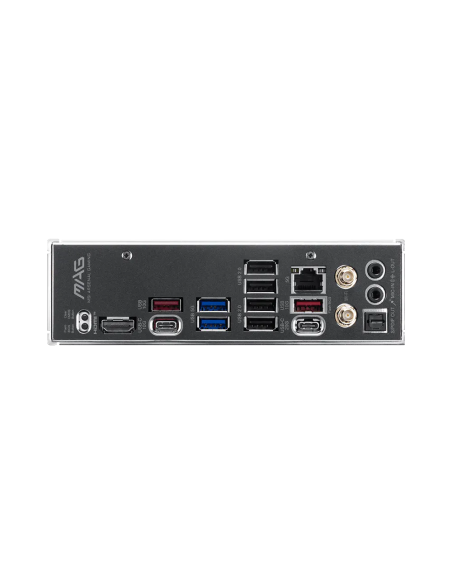

- Rear panel I/O
- Clear CMOS Button;
USB 10Gbps Type-A;
USB 5Gbps Type-A;
USB 2.0;
5G LAN;
Wi-Fi / Bluetooth;
Audio Connectors;
Flash BIOS Button;
HDMI™;
USB 10Gbps Type-C;
USB 20Gbps Type-C;
USB 10Gbps Type-A;
Optical S/PDIF Out - Manufacturer
- MSI
- Дънна платка - чипсет
- AMD B850
- Дънна платка - поддържан тип памет
- DDR5
- Дънна платка - честота на паметта
- 4800 MHz
5600 MHz
6400 MHz
8200 MHz
9000 MHz - Дънна платка - интерфейси
- M.2 (NVMe) конектор
- Дънна платка - портове
- HDMI
USB 2.0
USB 3.2
