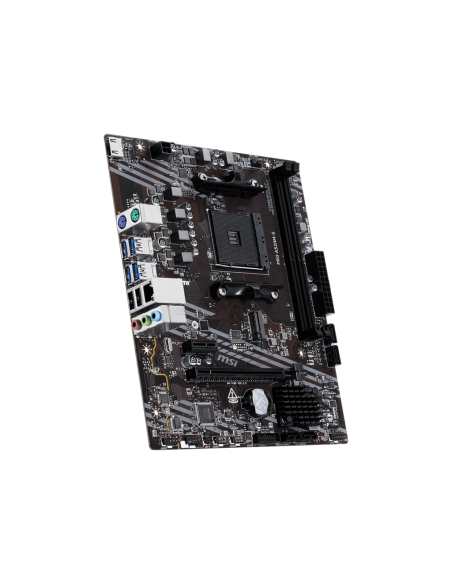

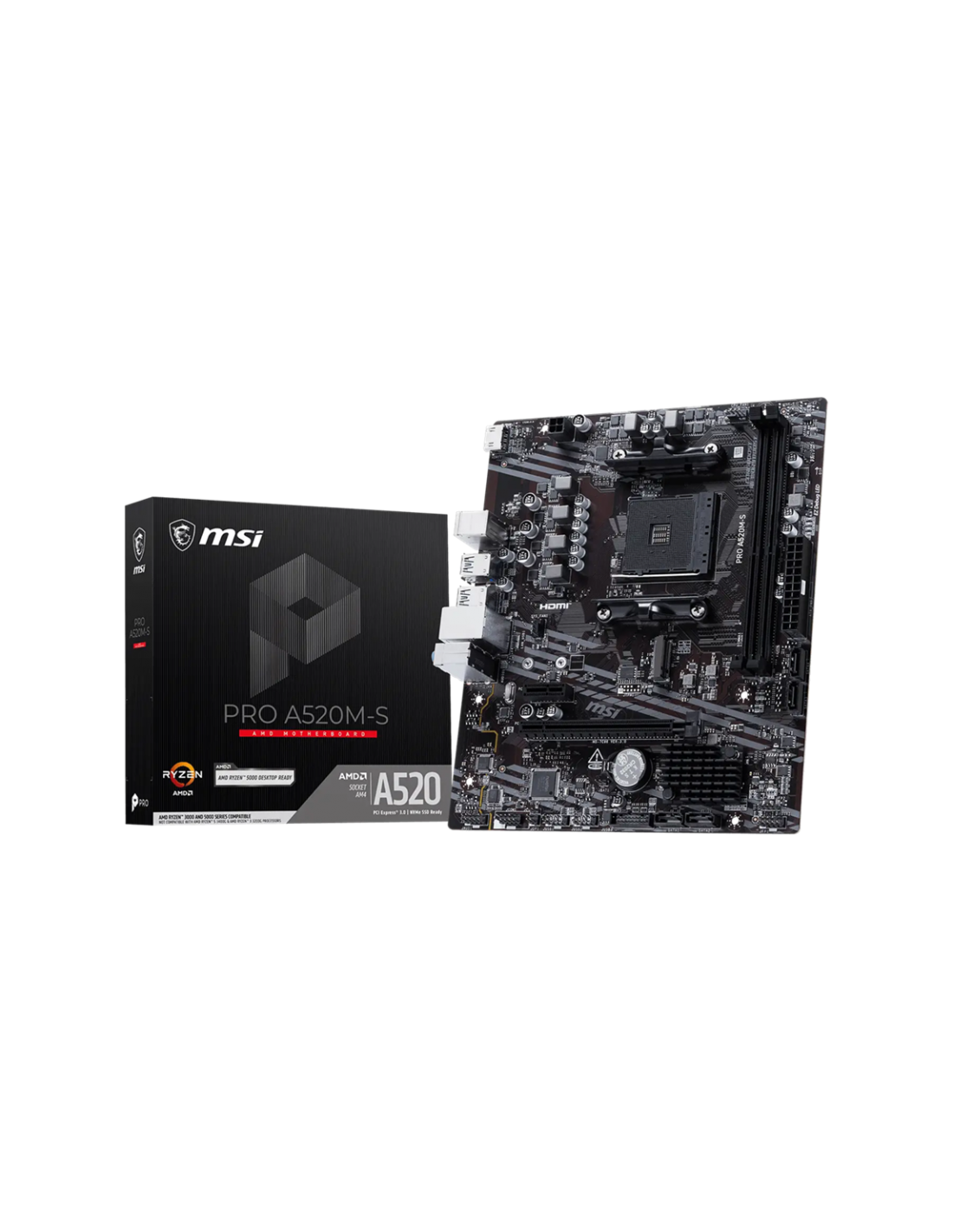

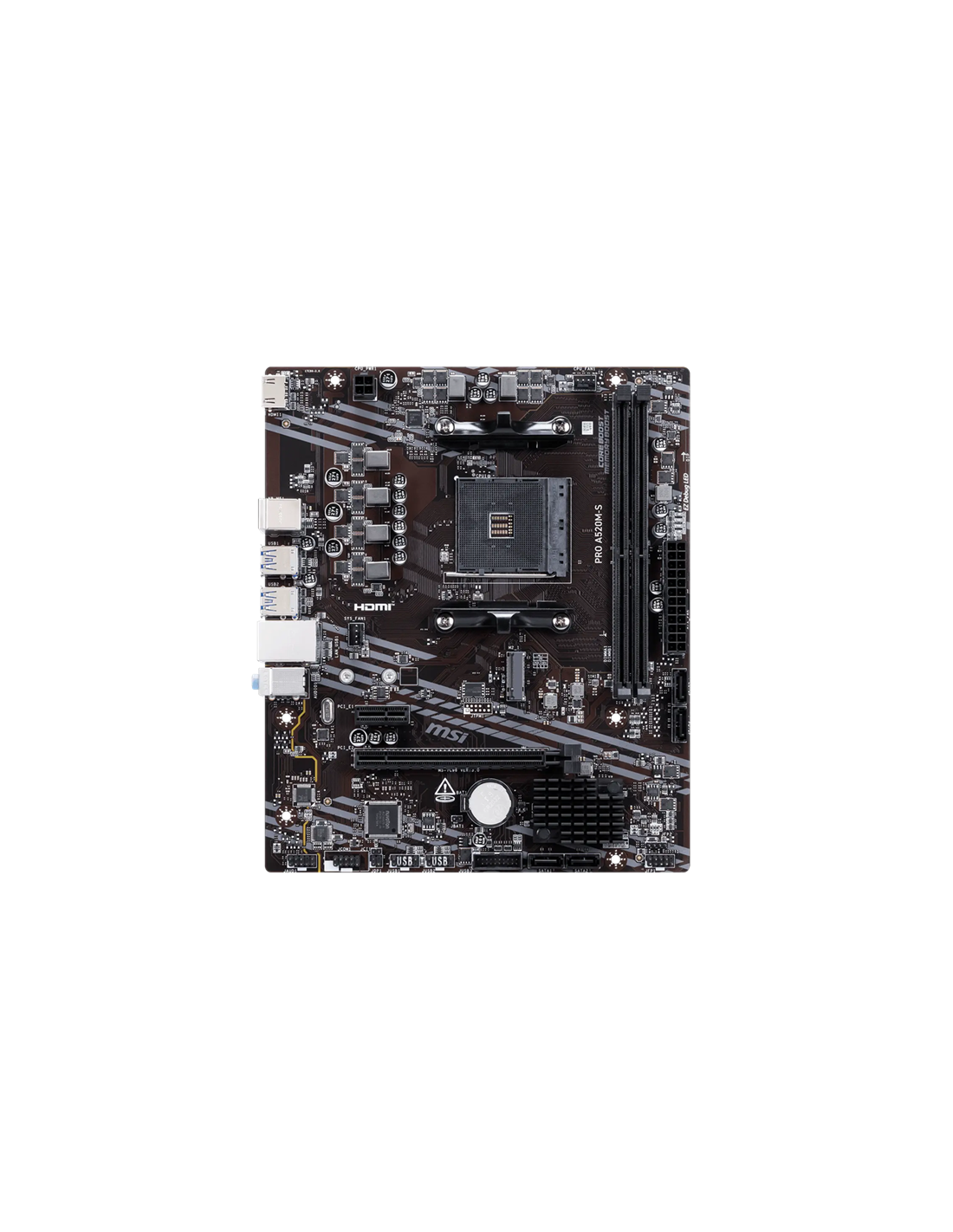

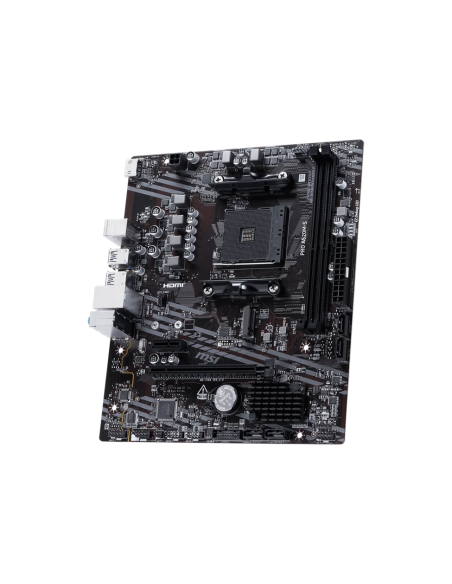

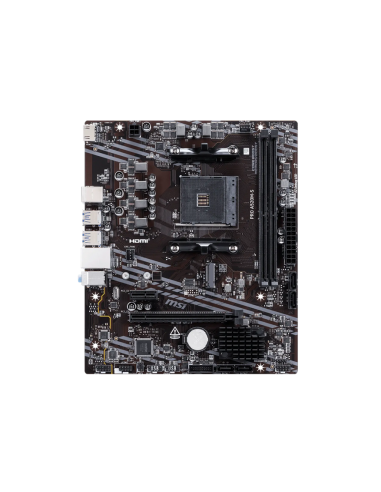

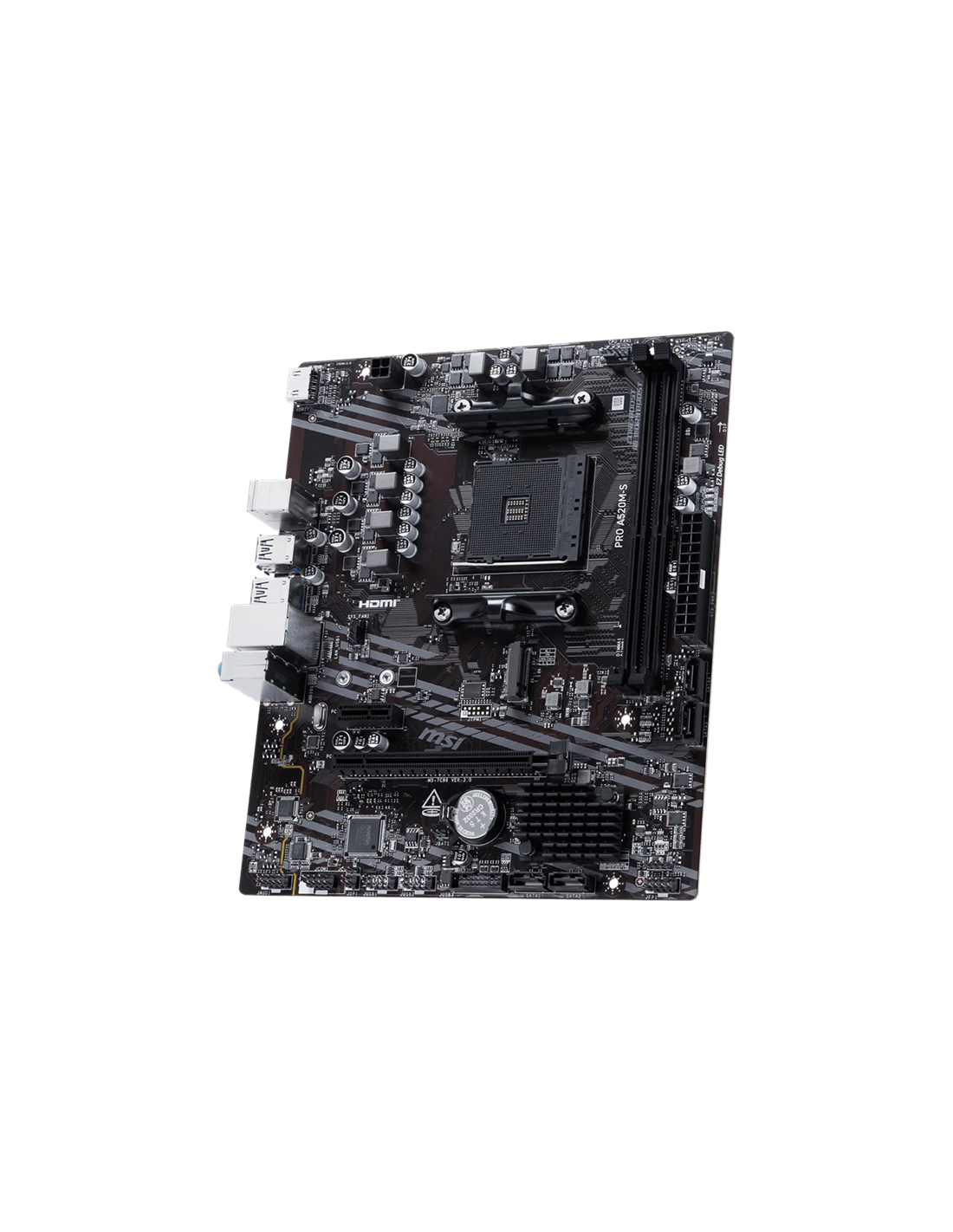

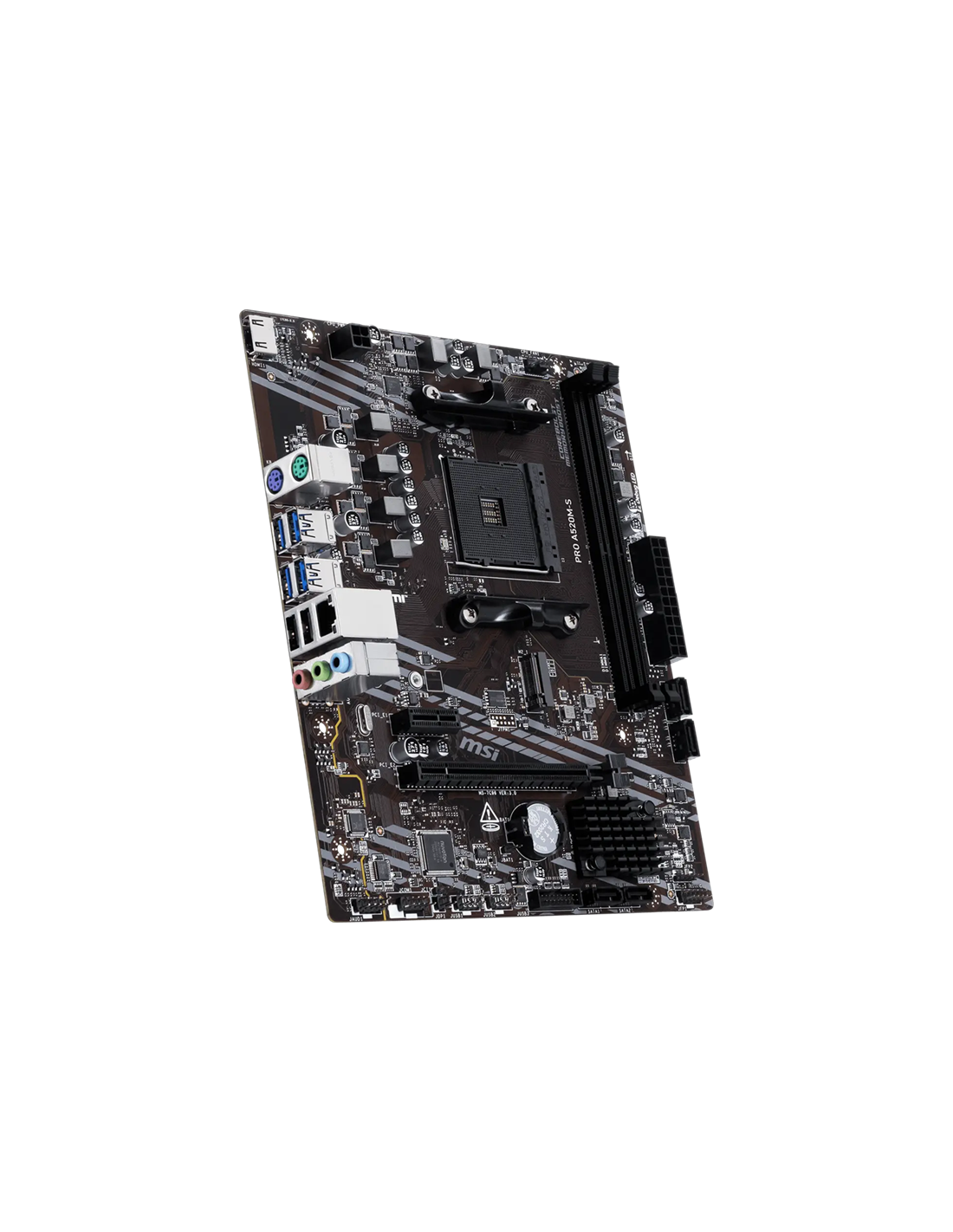

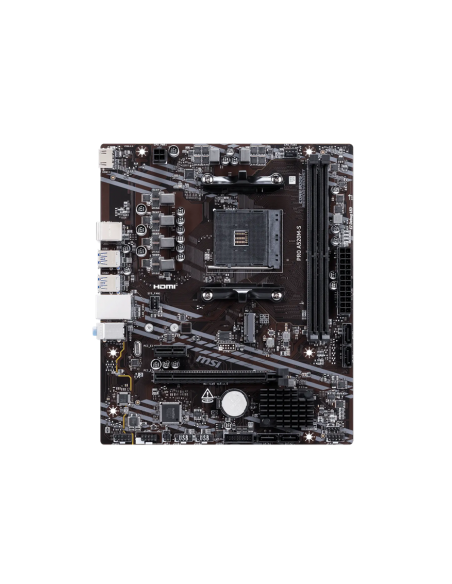

MSI PRO A520M-S /AM4

Референция 911-7C96-071

На склад

52,48 €

С вкл. данък

911-7C96-071_MO

MSI A520 2xDDR4 4xSATA3 RAID HDMI 1xM2 GLAN 1xPCIEx16 1xPCIEx1 _MO

Graphics: 1x HDMI™;
Support HDMITM 1.4, maximum resolution of 4K 30Hz
RAID: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Model: PRO A520M-S
Chipset: AMD A520
LAN: Realtek® RTL8111H 1Gbps LAN

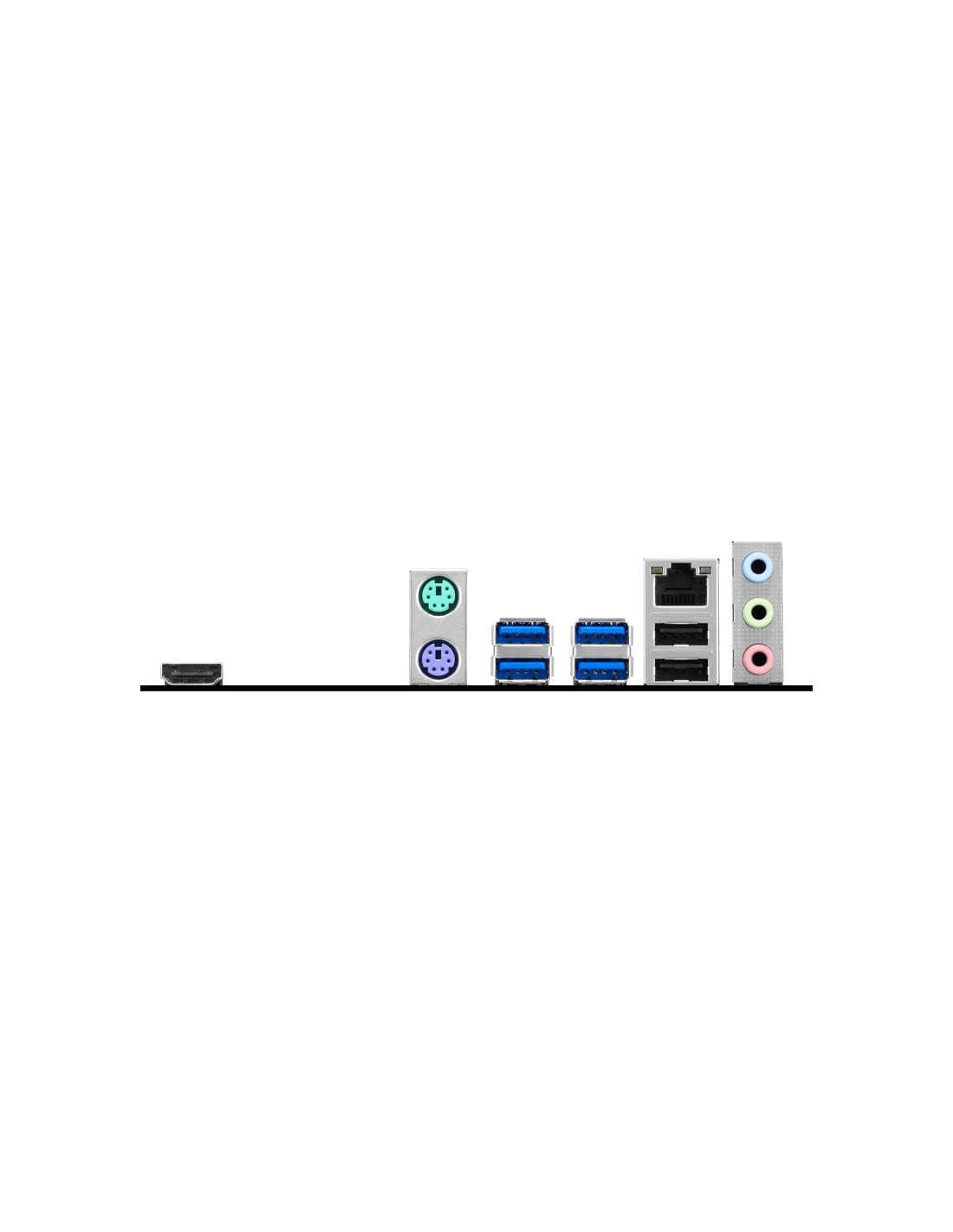

Rear panel I/O: HDMI™;
Keyboard / Mouse;
USB 5Gbps Type-A;
LAN Port;
Audio connectors;
USB 2.0
Storage: 1x M.2;
M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices;
4x SATA 6G
Memory type: 2x DDR4, Maximum Memory Capacity 64GB;
Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE;
Ryzen™ 5000 Series Processors max. overclocking:;
• 1DPC 1R Max speed up to 4600+ MT
Audio: Realtek® ALC897 Codec;
7.1-Channel High Definition Audio
Socket: AM4
USB: 2x USB 2.0 (Rear);
4x USB 2.0 (Front);
4x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front)
Other: 4x EZ Debug LED
CPU's supported: Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors
Manufacturer: MSI
Vendor_url: https://www.msi.com/Motherboard/PRO-A520M-S/Overview
Expansion Slots: 1x PCI-E x16 slot;
1x PCI-E x1 slot;
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset);
PCI_E2 Gen PCIe 3.0 supports up to x16 (From CPU)
Form Factor: mATX, 200mmx236mm
Connectors: 1x Power Connector(ATX_PWR);
1x Power Connector(CPU_PWR);
1x CPU Fan;
1x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Com Port (JCOM);
4x USB 2.0 ports;
2x USB 5Gbps Type A ports
Warranty: 36 Months
OS: Support for Windows® 11 64-bit
Дънна платка - чипсет: AMD A520
Дънна платка - поддържан тип памет: DDR4
Дънна платка - честота на паметта: 2667 MHz
2800 MHz
2933 MHz
3000 MHz
3066 MHz
3200 MHz
3466 MHz
3600 MHz
3733 MHz
3866 MHz
4000 MHz
4133 MHz
4266 MHz
4400 MHz
4600 MHz
5000 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: HDMI
USB 2.0
USB 3.2
Дънна платка - форм фактор: Micro ATX
